How Many Solar Panels Needed to Generate 1 Megawatt?
Generating a 1 megawatt (MW) solar power system represents an important milestone for commercial and industrial energy projects. This volume is typically realised in large-scale solar installations, such as commercial solar farms or industrial facilities, and requires careful planning, technical expertise, and substantial investment in renewable energy infrastructure.
But, how many solar panels does it actually take to generate 1 MW of power?
In this guide, we provide a complete breakdown based on real-world project data, system design, and typical commercial solar panel configurations.
Whether you’re planning a new commercial solar installation, expanding an existing facility, or evaluating investment in renewable energy, this guide outlines the practical requirements and considerations for achieving a 1 a MW solar PV system.

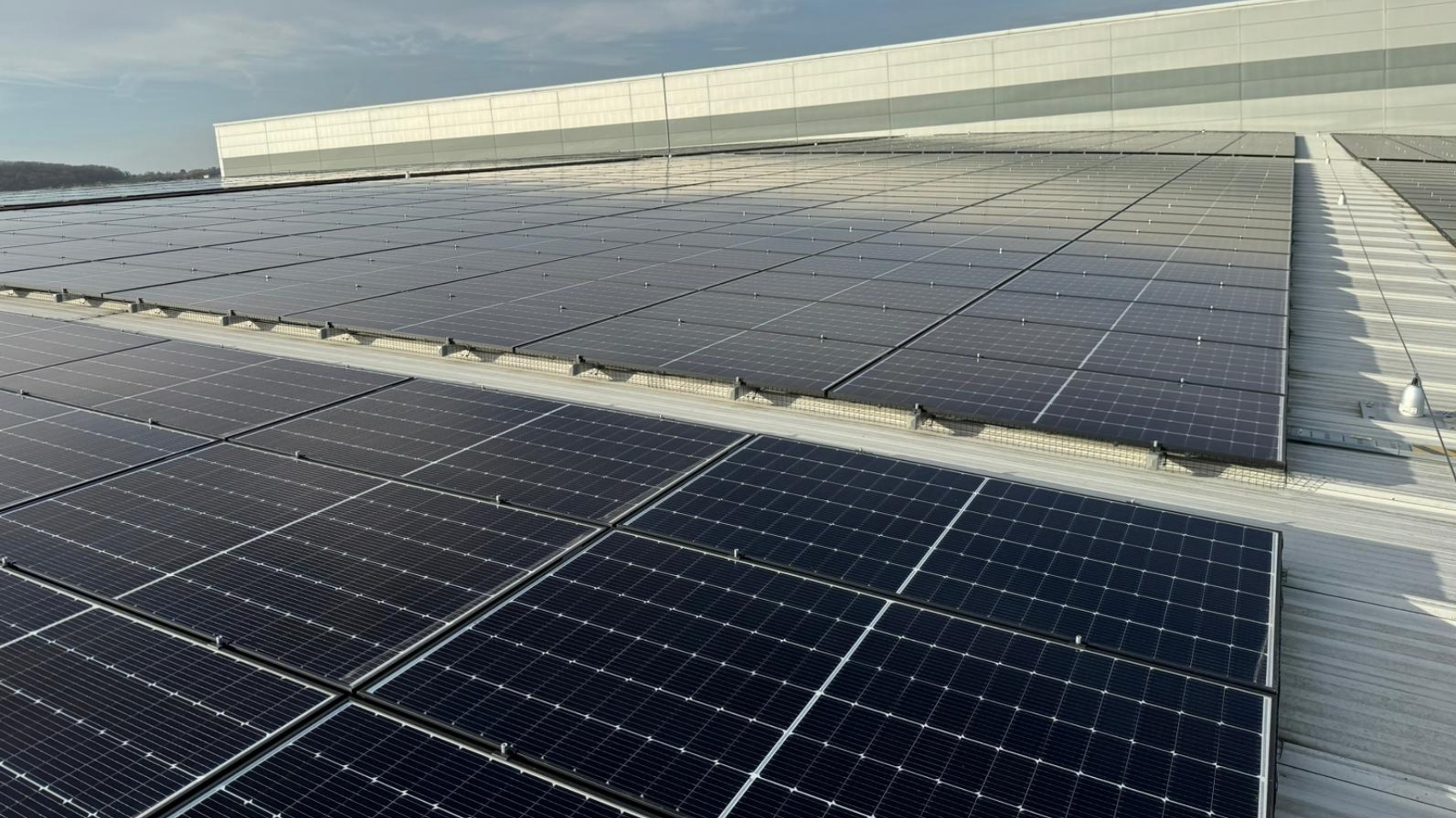

How Many Solar Panels Are Needed to Reach 1 Megawatt?
To generate 1 megawatt (MW) of solar power, you’ll normally need between 1,800 and 2,800 solar panels, depending on the wattage and efficiency of the selected modules.
At Excel Energy UK, we assess each site to identify the best panel type and layout, warranting maximum energy yield and system performance.

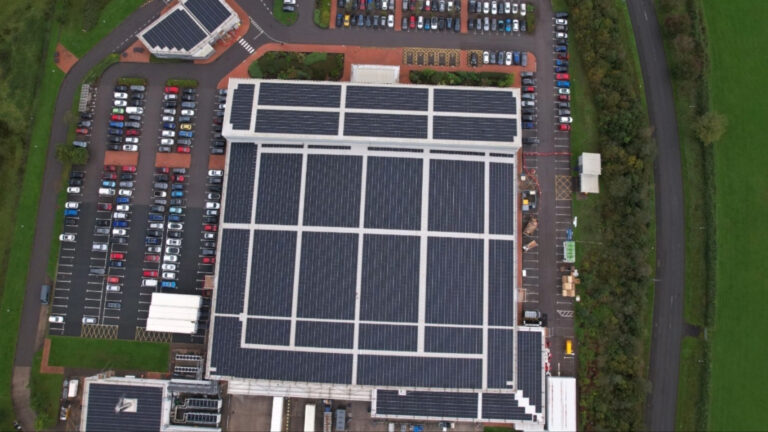

For large-scale commercial solar systems in the UK, high-efficiency monocrystalline panels ranging from 500W to 750W are most commonly used.
The higher the panel wattage, the fewer panels you need.
Here’s how the numbers break down:
Panel Wattage | Approximate Panels Required for 1 MW |
500W | 2,000 panels |
550W | 1,818 panels |
600W | 1,666 panels |
700W | 1,428 panels |
Typical Commercial Use Cases in the UK
In the UK, commercial and utility-scale solar projects usually utilise 500W – 700W bifacial monocrystalline panels, especially when:
Land space is limited, and fewer panels must produce more energy.
Labour and racking costs are a concern, as fewer modules reduce installation time.
Grid connections are capped, so maximising energy per panel is crucial.
According to Solar Energy UK, panel wattage has steadily increased over the past five years as the industry pushes for greater energy density and cost efficiency, a trend expected to continue beyond 2025.
Summary
To hit a 1 MW capacity:
You’ll need around 1,428 panels if using 700W commercial-grade modules.
Expect up to 2,00 panels if using older or lower-wattage modules (e.g. 500W).
Optimising for higher efficiency panels reduces installation costs, space requirements, and future maintenance.
If you’re planning a commercial-scale system, choosing the right panel wattage upfront can simplify your design, lower ongoing costs, and improve system longevity.
For accurate system design and yield forecasting, it’s best to consult with experienced solar engineers like Excel Energy.
What Factors Affect the Total Panel Count for a 1 MW System?
Several key variables determine how many panels you’ll need to generate 1 MW:
1. Panel Efficiency
Higher-efficiency panels produce more electricity per square metre, thereby reducing the total number of panels required to reach 1 megawatt (MW).
For example, a solar panel with 22% efficiency will convert 22% of the sunlight it receives into usable electricity, compared to just 18% for lower-end models. This efficiency difference can result in hundreds fewer panels and significantly less space required for installation.
In large-scale commercial settings, using higher efficiency modules (typically n-type monocrystalline panels such as TOPCon or HJT technologies) can be specifically valuable. They allow developers to:
✅ Maximise output on constrained sites, such as commercial rooftops.
✅ Reduce balance-of-system (BOS) costs, including racking and cabling.
✅ Lower long-term O&M costs, as fewer panels simplify maintenance.
According to Solar Energy UK, the trend in the UK commercial solar sector is to favour panels above 20% efficiency due to the need for compact, high-output systems that perform well in variable British weather.
2. Solar Irradiance (Location)
Solar irradiance refers to the amount of solar energy received per unit area. This varies significantly across the UK and directly impacts the energy yield of a 1 MW system.
Regions like Devon, Cornwall, and the South Coast receive between 1,100 and 1,200 kWh/m²/year, while areas in the North East, Scotland, and Northern Ireland may receive as little as 850 - 950 kWh/m²/year.
This means a 1 MW system in Bristol could produce over 25% more electricity annually than an identical system in Newcastle. As a result:
✅ Higher irradiance = fewer panels needed to generate the same annual output.
✅ Lower irradiance = systems may need to be oversized or combined with energy storage to meet energy goals.
Using location-specific data during the design stage is essential for accurate yield predictions and financial modelling. Tools like PVGIS or MCS Planning Standards (used in UK solar design) help model irradiance impacts at a postcode level.
3. Tilt and Orientation
Tilt and orientation dramatically affect how much sunlight panels capture throughout the day. In the UK, the optimal configuration is a south-facing orientation with a tilt angle of approximately 30 - 35 degrees, depending on latitude.
Solar panels installed with suboptimal orientation, such as flat roofs without tilting, east/west orientation, or excessive shading, can experience output losses of 10-20% compared to optimal installations.
This means:
✅ Suboptimal tilt or direction = more panels needed to meet a 1 MW target.
✅ In such cases, designers often over-specify the number of modules to compensate for lower performance.
✅ Tracking systems or higher racking structures may be used in ground-mounted systems to optimise sun exposure and decrease the performance gap.
For large commercial rooftops, clever layout designs (such as east-west configurations) are sometimes used to balance production throughout the day and maximise usable roof area, even if peak efficiency is slightly lower.
4. System Losses and Degradation
Even in a well-designed system, performance losses are unavoidable due to inefficiencies in electrical components and environmental factors. These include:
✅ Inverter losses (typically 1-2%)
✅ Cable and wiring resistance
✅ Soiling and dirt buildup
✅ Panel mismatch or shading
✅ Temperature effects
Over time, panels also degrade. Most Tier 1 commercial panels degrade at a rate of 0.3-0.5% per year, meaning a panel operating at 100% in year one might deliver only 87 -90% of its rated capacity after 25 years.
To account for these losses, it’s standard practice in commercial solar engineering to over-specify the DC system size by 30 - 70% to make sure the AC output remains consistent with performance goals.
For example, a system targeting 1 MW of usable AC output might install 1.3-1.7 MWp (DC capacity) to offset these expected losses.
This over-specification strategy is especially important for businesses aiming to meet fixed sustainability targets or contracted energy supply obligations over the system’s lifespan.
How Much Space Is Required for a 1 MW Solar Installation?
To install a 1 megawatt (MW) solar PV system, you’ll need a substantial amount of space, but the exact requirement depends heavily on the installation type, panel wattage, tilt angle, row spacing, and site-specific design constraints such as shading and accessibility.
A 1 MW rooftop solar system typically requires 4,000 - 4,500 m² of clear, load-bearing space.
A 1 MW ground-mounted solar array requires approximately 6,500 - 9,500 m² (or 3.2 to 4.5 acres), accounting for shading, tilt, and maintenance access.
For sites with limited space, high-efficiency panels and creative layout strategies are essential to meet generation goals without exceeding land or roof capacity.
Installation Type | Area Required (m²) | Area in Acres (Approx.) |
Rooftop (High Density) | 4,000 – 4.5000 m² | 1 – 1.25 acres |
Ground-mounted (Fixed) | 6,500 – 9,500 m² | 3.2 – 4.5 acres |
Rooftop Installations (High Density)
For rooftop systems, the necessary space can vary depending on the available roof area, obstructions (vents, skylights, HVAC units), layout flexibility, and maintenance walkways.
In high-density commercial rooftop installations, panels are packed tightly, often using east-west configurations or tilted racking systems to optimise energy per square metre.
Higher-wattage panels (e.g., 600W - 700W) allow for greater power output with fewer panels and less area.
Ballasted racking is commonly used on flat roofs to avoid structural penetrations, although this may slightly reduce module density due to weight limits.
According to industry estimates from Solar Energy UK, a well-optimised rooftop system for 1 MW may fit into as little as 4,000 m² with careful layout and panel choice.
Note: Structural assessments are crucial for rooftop solar, as commercial roofs must support the load of the array and its associated mounting hardware. Wind uplift, fire safety, and insurance implications should also be factored in early.
Ground-Mounted Installations
Ground-mounted solar farms require more land area than rooftop installations due to:
Row spacing (to avoid self-shading)
Access paths for maintenance vehicles and personnel
Drainage and vegetation clearance for environmental compliance
A fixed-tilt, south-facing system typically requires 6,500 to 9,500 m² (or 3 to 4 acres) to accommodate a full 1 MW of capacity. Developers often allow additional buffer zones for planning compliance, site access, and future expansion.
Component | Spatial Requirement Impact |
Tilt Angle | Steeper angles = more row spacing |
Tracking Systems | Require more spacing and clearance |
Inverter & Transformer Pads | Need dedicated space within fenced boundary |
Wildlife Corridors | May be required as part of local planning terms |
Site Planning and UK Policy Considerations
The UK Government’s solar strategy encourages efficient land use, favouring rooftop and brownfield development where feasible. However, for rural or agricultural ground-mount installations:
Sites under 50 kW may be exempt from planning permission.
Systems over 1 MW, however, often require full planning applications and environmental impact assessments depending on the location and local planning authority.
How Much Does a 1 Megawatt Solar System Cost?
As of 2025, the cost of installing a 1 megawatt (MW) solar PV system in the UK typically ranges between £750,000 and £1,000,000, depending on the installation type, site complexity, equipment quality, and grid connection requirements.
This figure includes:
Solar panels Inverters Mounting structures (roof or ground) Cabling and balance-of-system (BoS) components Labour and installation costs Testing and commissioning
It does not include land acquisition (for ground-mounted systems), planning permission applications, structural roof reinforcements, or ongoing operations and maintenance.
Note: Battery storage is not included in this cost range.
(BESS) are considered optional add-ons and are quoted separately due to their high cost and varying technical configurations.
Commercial Solar Pricing Breakdown (UK, 2025)
Installation Type | Est. Cost Range | Notes |
Rooftop (flat or pitched) | £750,000 – £850,000 | Requires less land but may involve structural assessments and reinforcements |
Ground-mounted | £850,000 – £1,000,000 | Includes civil works, racking, and site preparation |
Key Factors Influencing Price
Installation Type
Ground-mounted systems often require heavier infrastructure (e.g., foundations, fencing, access roads), but may be easier to scale. Rooftop systems need structural assessments and may be constrained by roof size, orientation, and obstructions.
Panel Type and Brand
Tier 1 manufacturers offer higher efficiency and longer warranties, but come at a premium. High-wattage panels (e.g. 700W) also reduce the total number of panels required, lowering racking and labour costs.
Grid Connection Costs
Depending on your location and Distribution Network Operator (DNO) requirements, connecting to the grid could cost £20,000 to £100,000+ for a 1 MW system. G99 applications and any necessary upgrades to the local network are additional.
Project Scale & Procurement Strategy
Larger systems benefit from economies of scale, bulk discounts, and lower soft costs per watt (e.g., legal, project management, and engineering fees). For rooftop portfolios (e.g., across several warehouses), the per-watt cost can drop further.
Labour & Local Compliance Costs
Prices vary regionally depending on labour availability, roof type (flat vs pitched), height/access complexity, and health and safety compliance.
Are Rooftop Systems Cheaper?
Not necessarily. While rooftop systems eliminate land purchase costs, they often incur higher per-watt costs due to:
Increased labour complexity (crane hire, limited working hours) Weight/load constraints requiring structural reinforcements More bespoke mounting systems Access constraints that can prolong installation timelines
However, they do provide value through:
On-site energy use, which avoids grid charges Better use of existing assets (e.g. warehouses, factories) Easier planning pathways under permitted development rights (for certain roof sizes)
Battery Storage Costs for Commercial Solar Systems (UK, 2025)
| Battery Size | Est. Installed Cost | Description |
| 500 kWh | £250,000 – £350,000 | Suitable for partial load shifting or small-scale peak shaving |
| 1 MWh | £400,000 – £600,000 | Common for large commercial and industrial setups |
| 2 MWh | £750,000 – £1,200,000 | Ideal for full load shifting and grid service participation |
Costs vary depending on:
Battery chemistry (lithium-ion is standard, but other types like flow batteries exist) Depth of discharge (DoD) Round-trip efficiency Cycle life and warranty Integration and grid services setup
Why Add Battery Storage?
Including commercial battrey storage system with your 1 MW solar system can:
Maximise on-site consumption by storing excess solar for later use
Reduce reliance on peak-time grid electricity
Enable participation in grid-balancing services (like frequency response or demand-side response)
Increase energy resilience and backup capabilities
However, it significantly increases upfront costs and ROI timelines unless paired with intelligent energy management and/or participation in grid trading schemes.
UK Government Grants for Commercial Solar Panel Installations
UK businesses can reduce capital costs for solar installations by accessing government-backed grant schemes aimed at accelerating decarbonisation and energy efficiency. Here are key options available in 2025:
Industrial Energy Transformation Fund (IETF)
The Industrial Energy Transformation Fund (IETF) is a UK government grant that supports high-energy-use businesses in reducing their carbon emissions through the adoption of energy-efficient and low-carbon technologies, including commercial solar PV systems.
✅ Eligibility: Large energy-using UK manufacturers
✅ What it covers: Up to 70% of project costs for energy efficiency and decarbonisation measures, including on-site solar PV
✅ Funding amount: Millions available across multiple rounds
✅ Administered by: Department for Energy Security and Net Zero
✅ More info: gov.uk/guidance/industrial-energy-transformation-fund
Public Sector Decarbonisation Scheme (PSDS)
The Public Sector Decarbonisation Scheme (PSDS) is a UK government funding programme that provides grants to public sector organisations for energy efficiency upgrades and low-carbon heat installations, including solar PV, to help reduce carbon emissions across public buildings.
✅ Eligibility: Public sector bodies (councils, NHS, schools, etc.)
✅ What it covers: Full or partial funding for renewable installations including rooftop solar
✅ Administered by: Salix Finance in partnership with the UK Government
✅ More info: salixfinance.co.uk/PSDS
Local Authority and Regional LEP Grants
Many local councils and Local Enterprise Partnerships (LEPs) offer business energy efficiency funding, including grants for solar installations, especially for:
✅ SMEs in designated low-carbon zones
✅ Businesses located in enterprise zones
✅ Projects aligned with regional Net Zero strategies
Check your local authority’s business energy funding portal for eligibility. For example:
✅ Greater South East Net Zero Hub
✅ West of England Green Business Grants
Rural Community Energy Fund (RCEF)
The Rural Community Energy Fund (RCEF) is a UK government programme that provides grants to rural communities for the development of renewable energy projects, such as solar PV systems by covering early-stage feasibility and development costs.
✅ Eligibility: Community groups and co-operatives in rural England
✅ Funding: Up to £100,000 per project
Note: Designed for not-for-profit and cooperative structures
What is the ROI on Commercial Solar Installations
Although upfront costs may seem high, the return on investment (ROI) for commercial solar installations is often persuasive, especially when designed around optimal on-site energy use and supported by current UK solar incentives.
A well-designed 1 MW solar PV system can:
✅ Produce over 1 million kWh annually
✅ Deliver 8 – 12% ROI, depending on energy usage patterns and grid export potential
✅ Pay for itself in 7 – 10 years
✅ Reduce electricity costs for 25+ years (with minimal maintenance)
Revenue Opportunities and Incentives That Improve ROI
In addition to savings from reduced grid consumption, several schemes help businesses monetise excess generation and enhance ROI over time:
Smart Export Guarantee (SEG)
Introduced by the UK government, the Smart Export Guarantee (SEG) allows commercial solar system owners to sell unused electricity back to the grid. Licensed energy suppliers offer payments per kilowatt-hour (kWh) of electricity exported.
✅ Average SEG rate (2025): 6p to 15p per kWh (depending on supplier)
✅ Eligibility: Systems under 5 MW with MCS certification and a smart meter
✅ Impact on ROI: Can add thousands of pounds annually in passive revenue, especially for businesses with low weekend energy use (when export potential is higher)
Capital Allowances (Including Full Expensing)
Businesses can claim 50% first-year capital allowances on qualifying solar PV equipment under the UK’s full expensing regime, meaning the total cost can be deducted from profits before tax in the year of purchase.
On-Site Consumption Savings
If your business consumes a significant portion of the electricity it generates, you avoid paying:
✅ Electricity unit rates (20p - 35p+/kWh, depending on tariff)
✅ Climate Change Levy (CCL)
✅ Transmission/distribution charges
Maximising self-consumption is one of the most effective ways to shorten payback periods.
Renewable Energy Guarantees of Origin (REGO)
Though the financial value of REGO certificates is modest, some corporate buyers and green suppliers pay a premium for clean energy backed by REGOs. In some Power Purchase Agreement (PPA) setups, this can be factored into your revenue stream.
Business Rate Relief (Site-Dependent)
In some regions and for certain installation types (especially public sector and charitable organisations), rate relief may apply, particularly if solar is used exclusively for on-site generation and not for sale to third parties.
Together, these incentives can improve system profitability, enhance cash flow, and shorten the payback period of a 1 MW commercial solar project making solar a financially and environmentally strategic investment.
How to Choose the Right Panel Type for a 1 MW System?
When designing a large-scale solar system, choosing the right panel is crucial for cost-efficiency, performance, and lifespan. Consider:
Criteria | Recommendation |
Panel Wattage | 500W – 600W monocrystalline (commercial-grade) |
Efficiency | ≥20% |
Degradation Rate | ≤0.5% per year |
Warranty | 30 years performance, 15-25 years product |
Tier 1 Manufacturers | Yes, for long-term reliability and bankability |
What Are the Maintenance and Operational Considerations?
1. Cleaning and Performance Monitoring
Commercial systems require regular cleaning, especially in urban and coastal environments. Solar Energy UK recommends at least annual inspections to maintain efficiency.
2. Inverter Replacement
Inverters typically last 10 - 15 years. Factoring in replacement costs and maintenance contracts is essential.
3. Grid Connection and Planning Permission
A 1 MW installation requires approval from your local DNO (Distribution Network Operator) and may need planning permission depending on size and location. The UK Government offers planning guidance for solar farms on gov.uk.
What Are the Benefits of Generating 1 Megawatt with Solar?
✅ Energy independence – Reduce reliance on the grid
✅ Cost savings – Cut down electricity bills and peak demand charges
✅ Sustainability – Significantly lower your carbon footprint
✅Revenue potential – Sell surplus power back to the grid via PPAs or export tariffs
✅ Public perception – Strong ESG (Environmental, Social, and Governance) messaging for stakeholders
Is a 1 Megawatt Solar Project Right for You?
If your business consumes large amounts of electricity or you’re planning a grid-connected solar farm, a 1 MW system can deliver serious long-term returns.
It’s a significant investment, in money, space, and planning but it can also future-proof your energy needs and cut operational costs dramatically.
Before proceeding, consult with a qualified commercial solar installer or energy consultant to assess feasibility, conduct a site audit, and design an optimal system.
Who Should Consider a 1 Megawatt Solar System?
A 1 MW system is best suited to:
✅ Commercial and industrial buildings with high energy usage
✅ Logistics centres and data centres
✅ Agricultural operations
✅ Solar farms and independent power producers (IPPs)
✅Councils or municipalities launching clean energy initiatives
Frequently Asked Questions
What is the lifespan of a 1 MW solar panel system?
Most commercial-grade solar panels have a lifespan of 25 – 30 years, with performance warranties often guaranteeing at least 80% capacity after 25 years.
Can a 1 MW system be installed on a flat commercial roof?
Yes. Flat roof systems can accommodate ballasted or frame-mounted arrays. Engineering assessments are required to confirm load capacity and wind uplift tolerances.
Is battery storage required for a 1 MW system?
Not required, but highly recommended for facilities looking to improve self-consumption, reduce peak tariffs, or achieve energy independence. Systems like Tesla Megapack or other commercial batteries are viable options.
How long does it take to install a 1 MW solar system?
From initial feasibility study to full commissioning, the timeline ranges from 3 to 6 months, depending on planning approvals, grid connection, and weather.
Do you need planning permission for a 1 MW solar installation?
Yes, especially for ground-mounted systems. Rooftop installations may be permitted development under certain thresholds, but it’s advisable to check local planning authority rules or consult gov.uk planning guidance.
Our Verdict
Determining how many solar panels you need to generate 1 megawatt depends primarily on the panel wattage, efficiency, location, and system design.
If you’re planning a commercial-scale solar installation in England or South Wales, Excel Energy offers comprehensive design and installation services tailored to your location. Request your free quote today and take the first step towards a cleaner, more energy-efficient future.
